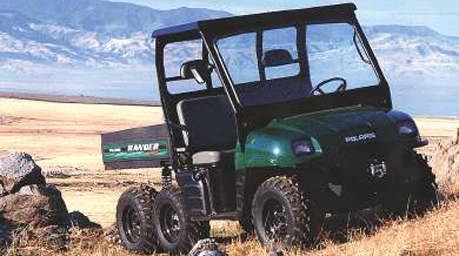

ATV-uri : Ranger 6x6 EFI

Tip Motor

Polaris twin cylinder

Displacement / HP

683cc / 40 HP

Cooling

Liquid-Cooled

Lubrication

Pressurized wet sump

Oil Capacity

2/1.9 qts/ltr

Carburetion

Electronic Fuel Injection (EFI)

Fuel Capacity

9/36 gal/ltr

Coolant Capacity

3.3/3 qts/ltr

Alternator

500 watts

Starting / Battery

Electric / 12V - 30 AH

Transmission

Auto - PVT (Polaris Variable Transmission)

Gear Range

In-line, Dual-range forward and reverse

Drive

Switch-engaged on-demand true 6-wheel shaft drive

Cauciucuri Fata

25 x 10 - 12

Cauciucuri Spate

25 x 11 - 12

Suspensie Fata

MacPherson strut with 8.0 in of travel

Suspensie Spate

Swing arm dual shock, 6.25 in. / 15.9 cm of travel

Suspensie Centrala

Prog. Rate, fully ind. A-arm, 5.3 in / 13.3 cm of travel

Turning Radius

186in / 472cm

Wheelbase

90in / 229cm

Front / Rear Brakes

Foot-activated 4-wheel hydraulic disc, stainless steel lines

Parking Brake

Foot-activated dedicated mechanical disc

Dry Weight

1410 lbs / 641 kg

Length / Width / Height

120x60x75 in. / 305x152.4x190.5 cm

Ground Clearance

7.2 in. / 18 cm

Box Dimensions

54x42.5x11.5 in / 143x108x31.5 cm

Box Volume

15 cubic feet

Box Capacity

1250 lb. / 567 kg

Hitch Towing Capacity

1750 lbs / 794 kg

Vehicle Payload Capacity

1750 lb. / 794 kg

DC Outlet

Dash Receptacle

Outlet

Receptacle

Brake Light / Taillight

Standard

Headlight

2-Dual beam (hi / lo) - 35w quartz - halogen

Multi-function Speedometer: Fuel, Speed, Hour meter, Odo, trip, Illuminated parking brake indicator, AWD engagement indicator, EFI diagnostic codes, gear selection, clock

Culori

Verde
